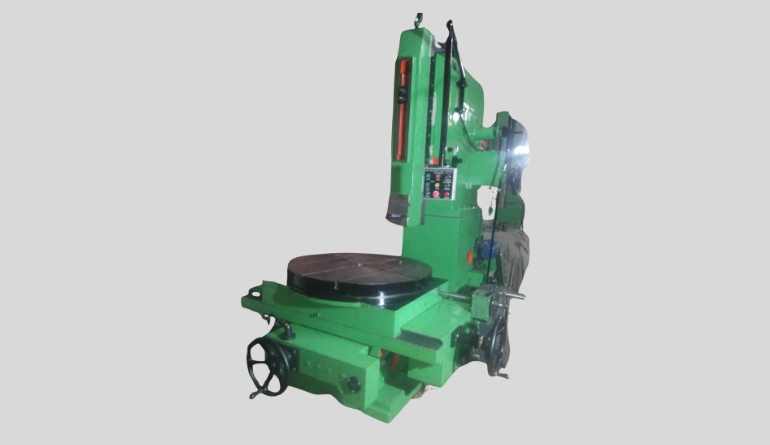

Slotting Machine
A slotting machine, often referred to as a slotter, is a versatile tool in the realm of machining, designed to create precise vertical slots, grooves, and keyways in various materials. Its primary function involves the vertical reciprocating motion of a cutting tool, which meticulously removes material from a stationary workpiece to achieve the desired shape.
Key Components and Their Functions
Base and Column: Serving as the foundational support, the base ensures stability, while the column provides vertical support for the machine’s moving parts.
- Ram and Tool Head: The ram executes the vertical reciprocating motion, holding the tool head that houses the cutting tool. This assembly is pivotal in material removal.
- Worktable: A robust platform where the workpiece is securely clamped. It can be adjusted longitudinally, laterally, and in some designs, rotationally, to facilitate complex cutting paths.
- Feed Mechanism: This system controls the movement of the worktable, ensuring consistent and precise material removal during the cutting process.
Technical Details
| Model | SLA-150 | SLA-250 | SLA-300 | SLA-450 |
|---|---|---|---|---|
| Length of stroke Max. | 175 | 250 | 325 | 475 |
| Working Stroke | 150 | 225 | 300 | 450 |
| Ram adjustment | 125 | 200 | 250 | 325 |
| Length of Ram Bearing | 500 | 550 | 625 | 875 |
| Throat Adjustment | 300 | 350 | 500 | 675 |
| Max. Accommodated Diameter | 500 | 750 | 850 | 1500 |
| Height between Table & Head | 300 | 375 | 450 | 700 |
| Longitudinal Feed Manual | 200 | 325 | 450 | 625 |
| Longitudinal Feed Auto | 175 | 300 | 425 | 575 |
| Cross Feed Manual | 225 | 250 | 400 | 550 |
| Cross Feed Auto | 200 | 225 | 375 | 500 |
| Dimension of Table | 275 | 375 | 600 | 900 |
| No. & Ranges of Speeds | 2 (30-50) | 3 (30-60-90) | 3 (25-40-65) | 6 (10-15-25-35-50-70) |
| Motor (960 RPM) | 1.5 HP | 2 HP | 3 HP | 5 HP |
| Net Weight | 850 Kg. | 1200 Kg. | 1750 Kg. | 4000 Kg. |
| Gross Weight | 975 Kg. | 1400 Kg. | 1925 Kg. | 4500 Kg. |
