Planning Machine

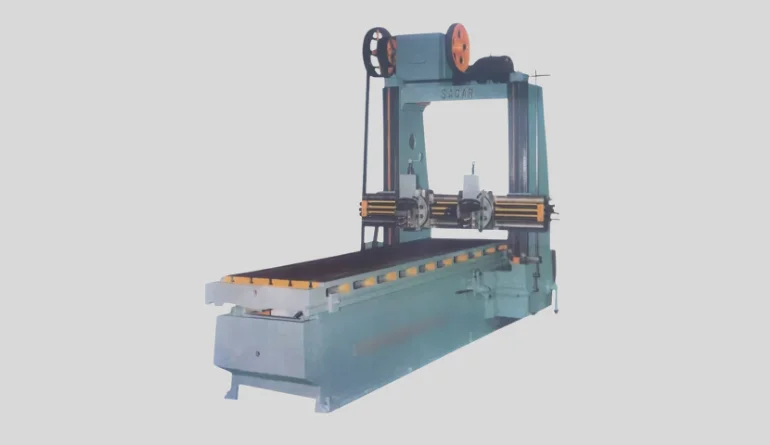

The Planning Machine is one of the most powerful and efficient tools used in large-scale industries for machining flat surfaces on massive workpieces. Engineered for strength, precision, and reliability, it’s a cornerstone machine in industries dealing with heavy and oversized components. At Sagar Machine’s India, we offer high-performance planning machines that are robustly constructed to handle demanding tasks with ease. These machines are designed to deliver unmatched accuracy and surface finish, even on the toughest materials.
Key Features of Planning Machines by Sagar Machine’s India
- Sturdy Construction: Made from high-grade cast iron with heavy cross ribs to absorb vibrations and maintain precision.
- Precision Gear Drive Mechanism: Equipped with high-quality gears to ensure smooth table movement and minimal backlash.
- Adjustable Cross Rail: The cross rail can be adjusted to accommodate workpieces of varying heights, ensuring optimal tool alignment.
- Automatic Feed System: Cross and vertical feed systems are fully motorized, reducing operator fatigue and ensuring uniform material removal.
- High Accuracy: Designed with close tolerances to deliver a fine surface finish and high dimensional accuracy.
- Easy Maintenance & Long Life: Lubrication points are easily accessible. All moving parts are precisely aligned for minimal wear and tear over time.
Technical Details
Model | PLG L 4 Ft. |
PLG L 5 Ft. |
PLG L 5.5 Ft. |
PLG L 6 Ft. |
PLG L 7 Ft. |
PLG L 8 Ft. |
PLG L 9 Ft. |
PLG L 10 Ft. |
---|---|---|---|---|---|---|---|---|
Distance Between Columns | (All dimensions in mm unless specified) | |||||||
Length of Stroke | 1219 to 1828 | 1628 to 12800 | 1230 to 12200 | 1243 to 1524 | 1273 to 1524 | 1304 to 1524 | 1504 to 1524 | - |
Width Between Columns | 1220 | 1524 | 1676 | 1828 | 2133 | 2438 | 2743 | 3048 |
Height Under Cross Rail | 1220 | 1524 | 1676 | 1828 | 1828 | 1524 | 1524 | 1524 |
Table Specifications | ||||||||
Working Surface Length | Length of Stroke Plus 250 | 762 | 850 | 1060 | 1240 | 1524 | 1524 | 1828 |
Working Surface Width | - | - | - | - | - | - | - | - |
No. of T-Slots | 5 | 5 | 6 | 6 | 7 | 7 | 9 | 9 |
Width of T-Slots | 18 | 18 | 18 | 18 | 18 | 18 | 22 | 22 |
Distance Between-T Slots | 127 | 148 | 148 | 190 | 190 | 190 | 200 | 200 |
Rail Head Specifications | ||||||||
No. of Tool Holders | 900 | 1200 | 1350 | 1500 | 1760 | 2065 | 2370 | 2675 |
Horizontal Traverse of Tool Holder | 304 | 304 | 304 | 304 | 304 | 304 | 304 | 304 |
Vertical Traverse of Tool Holder | ±50° | ±50° | ±50° | ±50° | ±50° | ±50° | ±50° | ±50° |
Max. Swivel of Tool Head Slide to Either Side | 44×44 | 44×44 | 44×44 | 51×51 | 51×51 | 51×51 | 51×51 | - |
Max. Size of Tool Shank | +25° | +25° | +25° | +25° | +25° | +25° | +25° | +25° |
Cross Rail
Vertical Traverse of Cross Rail
1200 | 1500 | 1650 | 1800 | 2060 | 1500 | 1500 | 1500
Elevating Traverse of Side Head
1080 | 1365 | 1515 | 1660 | 1880 | 1365 | 1365 | 1365
Speed & Feeds
Single Speed of Table
9 Meters/Minute | 6 Meters/Minute
3 Table Surface
Speeds with 3 Speed Gear Box at extra cost on order
Forward
4-7-10 Meters Per Minute | 3-4, 4-7 Meters Per Minute
Return
6-11-14.5 Meters Per Minute | 4,5-7-11 Meters Per Minute
Cross Feed of Tool
0.30 to 1.5 MM/Stroke
Vertical feed of Tool
0.20 to 1.0 MM/Stroke
Main Drive
Main Motor 1440 RPM
HP. As Per Size of Machine
Cross Rail Elev. Motor 960 RPM
1.5HP | 1.5HP | 1.5HP | 2.0HP | 2.0HP | 3.0HP | 3.0HP | 5.0HP
