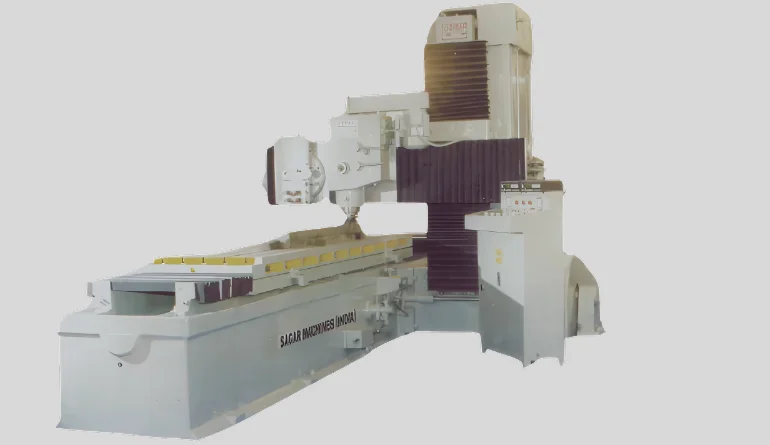

Open Sided Planer Cum Plano Miller
The Open Sided Planer Cum Plano Miller is a versatile and robust machine tool engineered to perform both planing and milling operations on large workpieces. Its open-sided design offers exceptional flexibility, allowing for the accommodation of workpieces that exceed standard dimensions, making it an invaluable asset in industries requiring precision machining of sizable components.
Design and Construction
At the heart of the Open Sided Planer Cum Plano Miller is its sturdy, open-sided frame. This design facilitates the handling of oversized workpieces by providing unobstructed access from one side. The machine’s bed is constructed from high-quality cast iron, ensuring stability and vibration dampening during operations. The table, mounted on the bed, moves longitudinally to execute the cutting process, guided by precision-machined ways that guarantee accurate movement.
Functional Capabilities
The Open Sided Planer Cum Plano Miller is adept at performing both planing and milling operations:
- Planing: In this mode, the machine utilizes a single-point cutting tool to produce flat surfaces. The workpiece is secured to the table, which moves back and forth beneath the stationary tool head. This operation is ideal for achieving precise flat surfaces on large components.
- Milling: By replacing the planing tool head with a milling head, the machine can perform milling operations. The milling head, equipped with a rotating multi-point cutter, removes material from the workpiece as the table moves longitudinally. This setup allows for complex machining tasks, including slotting, grooving, and contouring.
Technical Details
| Model | SPEM 425 | SPEM 630 | SPEM 830 | SPEM 1035 | SPEM 1235 | SPEM 1835 | SPEM 2435 |
|---|---|---|---|---|---|---|---|
| Capacity Stroke (MM) | 425 | 630 | 830 | 1035 | 1235 | 1835 | 2435 |
| Max. Length Under Cross Rail | 685 | 914 | 1066 | 1066 | 1066 | 1066 | 1066 |
| Working Surface Table | 1210x610 | 828x620 | 828x620 | 828x762 | 828x762 | 1066x762 | 1371x762 |
| No. of T Slots | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Distance Between T Slots | 120 | 120 | 120 | 127 | 127 | 127 | 127 |
| Table Speed (R.P.M.) | 5.0 | 5.4 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Motor (960 RPM) | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP | 1 HP |
| Speeds R.P.M. Elevating | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
| Drive Motor HP | 3.0 | 3.0 | 3.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Range of Operations | 8–12–16 | 8–12–16 | 8–12–16 | 8–12–16 | 8–12–16 | 8–12–16 | 8–12–16 |
| Feed Rate (mm/rev) | 0.083–0.123 | 0.083–0.123 | 0.083–0.123 | 0.083–0.123 | 0.083–0.123 | 0.083–0.123 | 0.083–0.123 |
| Shank Size of Tool | 44x44 | 44x44 | 44x44 | 44x44 | 44x44 | 44x44 | 44x44 |
| Max. Swivel of Tool Slide | ±50° | ±50° | ±50° | ±50° | ±50° | ±50° | ±50° |
| Vertical Traverse of Tool Slide | 304 | 304 | 304 | 304 | 304 | 304 | 304 |
| Horizontal Traverse of Rail Head | 750 | 775 | 800 | 800 | 800 | 800 | 800 |
| Bow/Clapper Box Swivel | ±25° | ±25° | ±25° | ±25° | ±25° | ±25° | ±25° |
