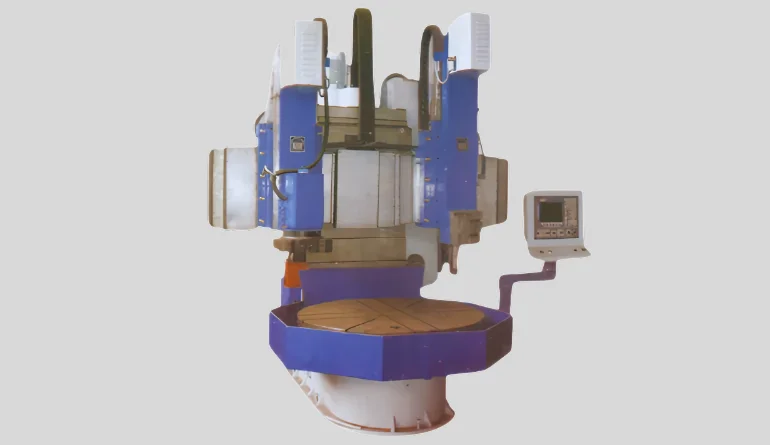

CNC VTL 1250
The CNC Vertical Turning Lathe (VTL) 1250 is a precision-engineered machine designed for the efficient machining of large, heavy workpieces. Its vertical orientation allows gravity to aid in securely holding the workpiece, enhancing stability during operations. This design is particularly advantageous for handling components with substantial diameters and weights.
Key Features and Specifications:
- Table Diameter: Typically, the CNC VTL 1250 comes with a table diameter of 1250 mm, accommodating sizable workpieces with ease.
- Turning Height: With a maximum turning height between 800 mm and 1400 mm, the VTL 1250 can handle tall workpieces effectively.
- Workpiece Weight Capacity: The machine can support workpieces weighing up to 5900 kg, making it suitable for heavy-duty applications.
- Spindle Power and Speed: Equipped with spindle motors ranging from 30 kW to 45 kW, the VTL 1250 delivers ample power for various cutting operations. The spindle speed varies between 2 to 350 rpm, offering flexibility for different machining requirements.
- Tool Turret: The machine features an 8 to 12-station tool turret, facilitating quick tool changes and enhancing productivity.
| Specification | Details |
|---|---|
| Table Diameter | 1250 mm |
| Max. Distance from Table | 600 mm |
| Travel of Head Centre towards right from table centre | 500 mm |
| Travel of RH Ram Head | 500 mm |
| Table Speeds | Continuously Variable |
| Feeds | Continuously Variable |
| HP of Main Motor | 20 HP with AC Drive |
*Note: In accordance with our continuous improvements, we reserve the right to change the design, specifications and colour without any notice. Accessories shown in the catalogue are not part of standard equipment.
